In 2018, a group of skilled engineers who had developed and innovated the electronic drum category for the last 20 years decided to pursue a different path. A fluid approach to developing electronic drums was needed, after feeling the limits of working for a leading Japanese musical instrument manufacturer. A place where they could throw the constraints of cost and mass production out the window.

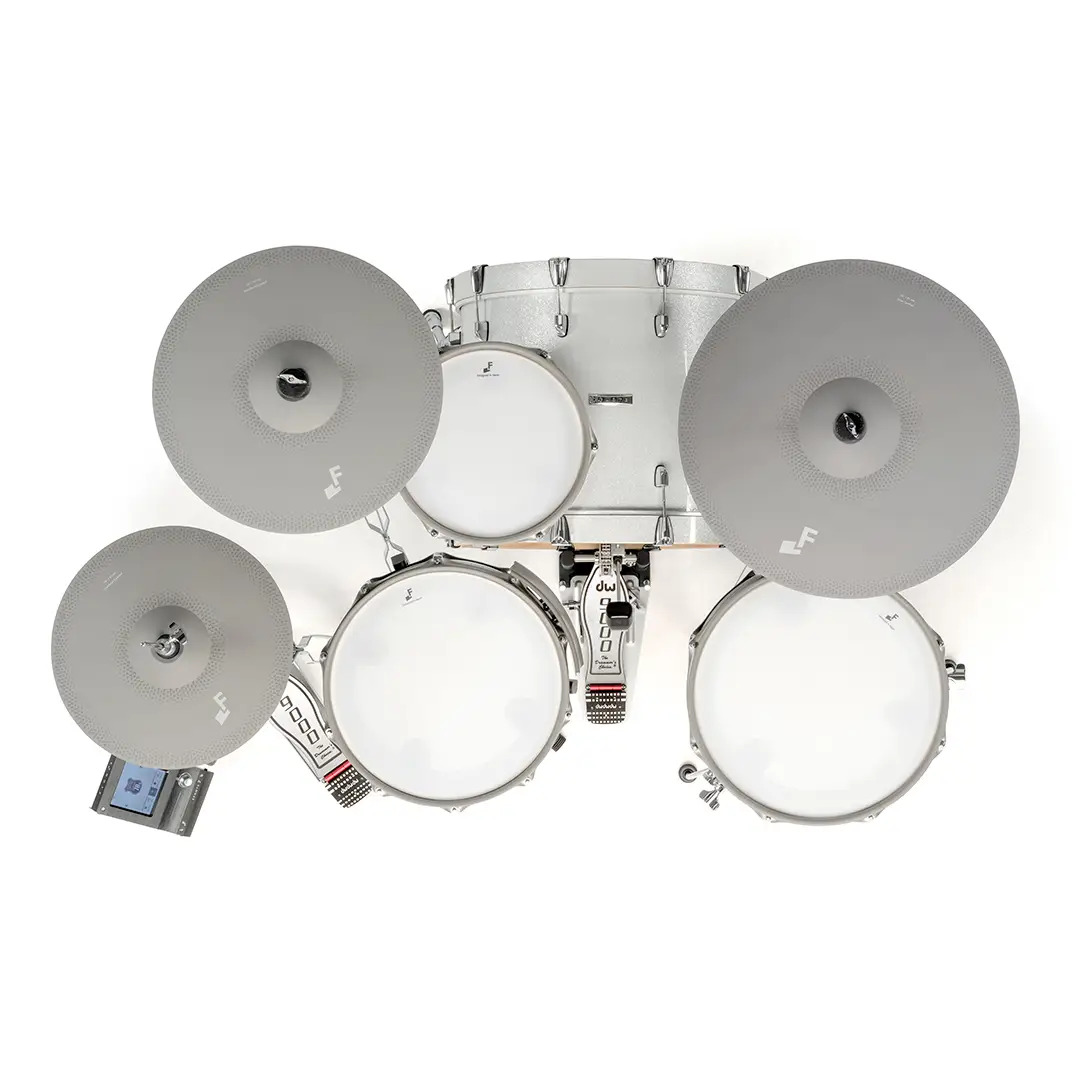

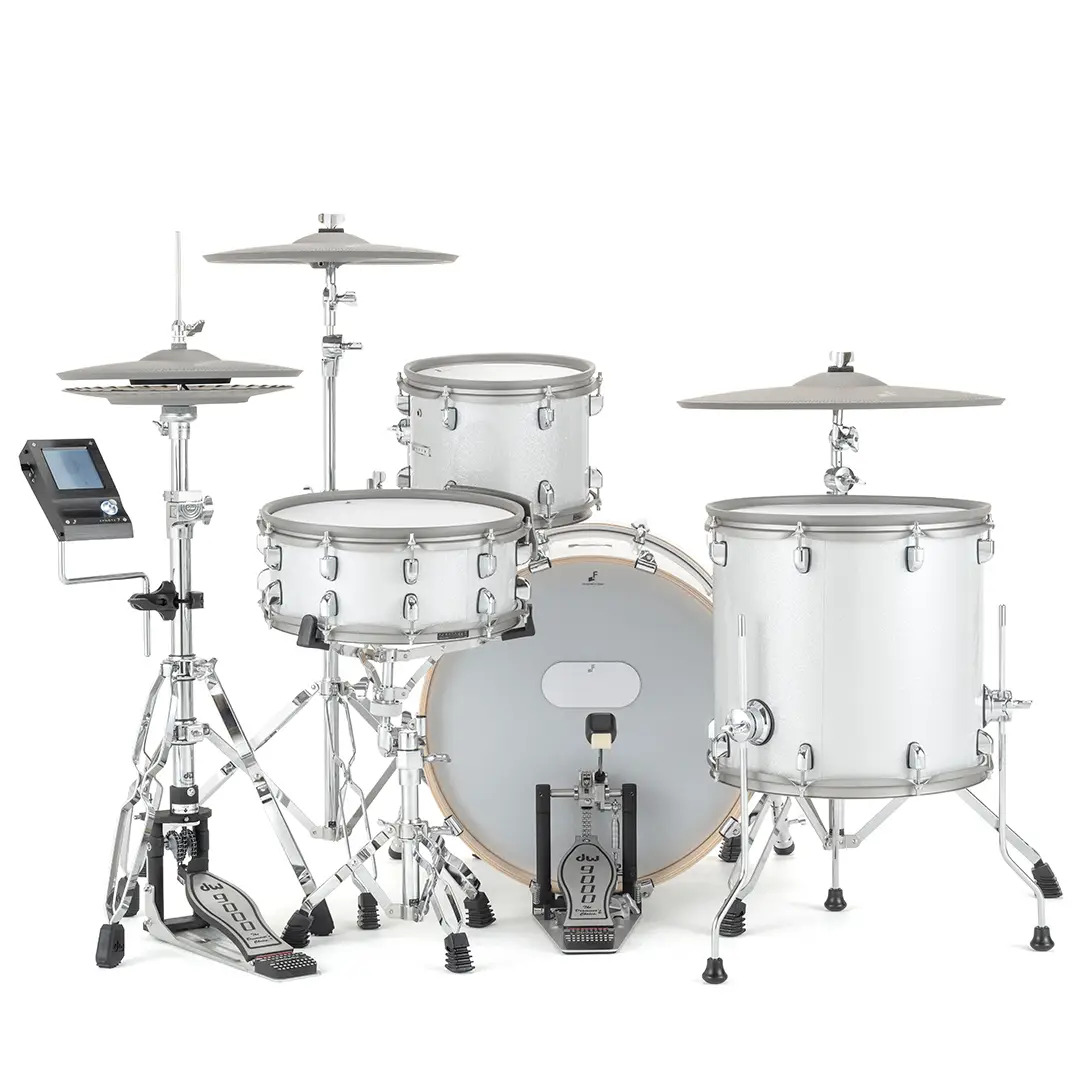

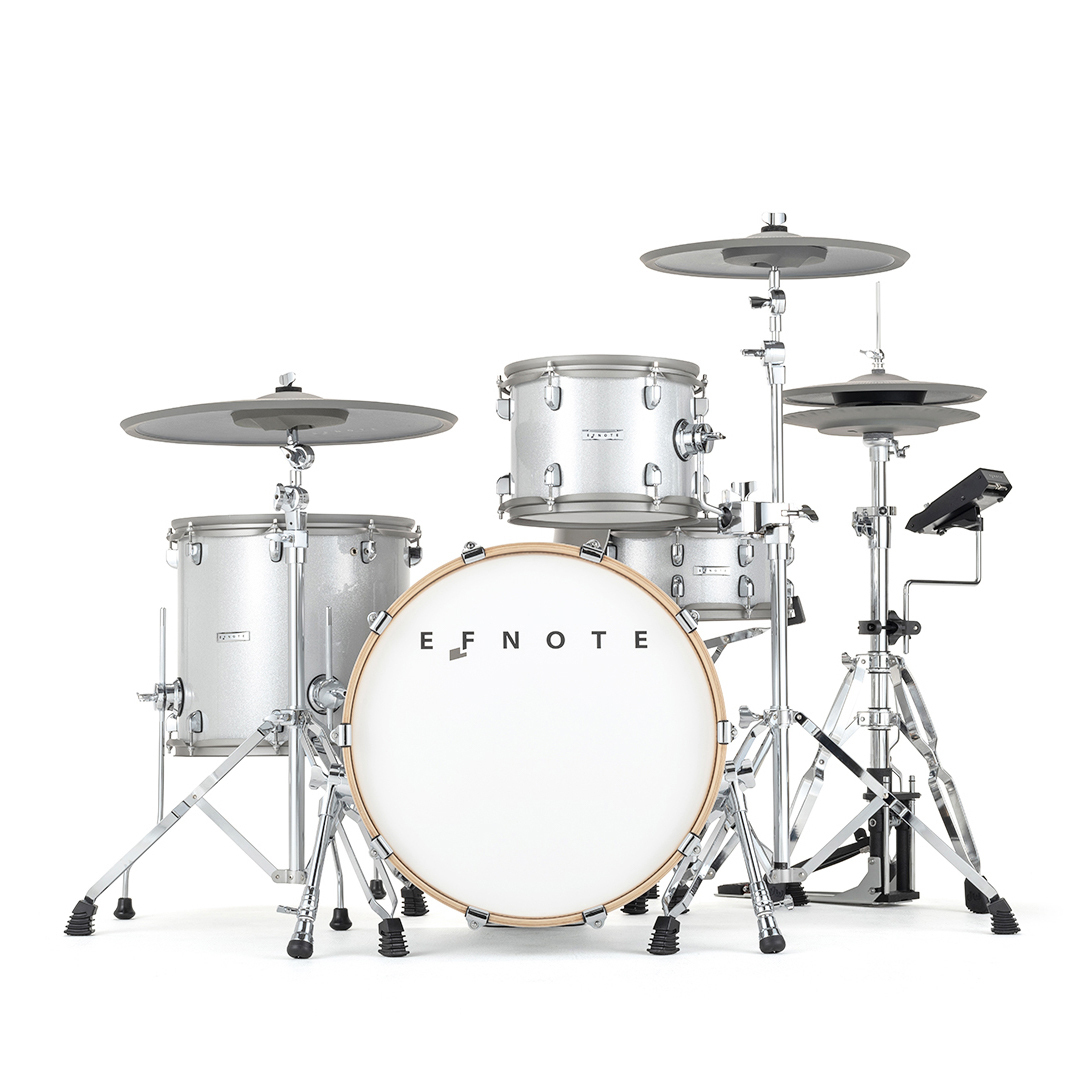

EFNOTE 7 gives drummers a whole new experience and exhilaration with the overwhelmingly realistic touch of full-scale shells/cymbals, and the brilliant sound remastered to match them perfectly.

*Please note - DW drum pedals are shown for example only, not included. A+C+D package contains all required drum hardware for setup including a standard single bass drum pedal, drum throne and sticks.

The Authentic Presence
20 x 15" kick drum and 14 x 5.5" snare drum with white sparkle finishes that shine brightly on stage. 14” real hi-hats and unparalleled 20" ride cymbal... Everything is for fascinating you and your audiences.

The Beauty of Proportion
The depth-caliber ratio is precisely designed to evoke the beauty of sound and appearance.

Specially customized the 11 x 8" rack tom and the 15 x 15" floor tom are one of the results of EFNOTE's uncompromising pursuit.

The Expandability for Customized Setup
EFNOTE drums are most beautifully expandable thanks to not only perfect pad compatibility but also excellent design uniformity.

Visit the Customize page for customized setup examples.
Describing Textures of Vintage Drums
Good old collector's drum sets are newly recorded for EFNOTE 7, are mastered carefully with minimal processing. The Tru-Aco sound technology brings out the full texture and original vividness of the sounds.

Evolving ELISE Sensing Chip
The ELISE sensing technology is improved day by day, for capturing fine rolls, strokes from soft touches to extra-hard, and slight nuances of footwork.

Advanced Sensing Structure
The sensor design optimized based on many years of experiences. It evens out the sensitivity and conveys the player's intention and dynamics without deterioration, to support perfect playabliity.

Touch and feel the new experience.

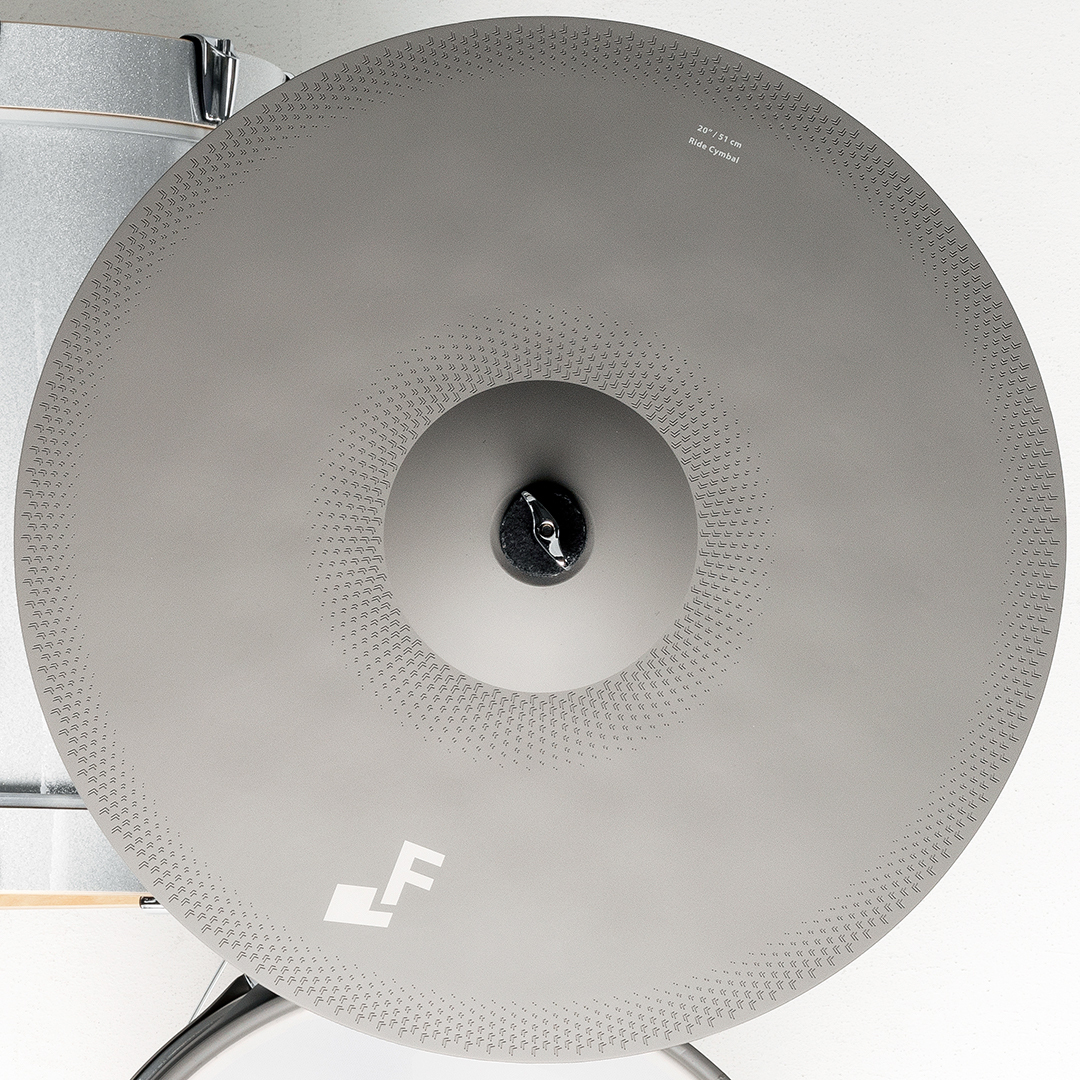

The 20" Ride Was Born!
The ultimate comfort that the electronic cymbals have finally reached.

The 20" diameter provides slow wobbling of edge and the quick response of bow/cup, and the uneven smooth surface that simulates a hammered cymbal makes sticks bounce naturally.
The Finest Hi-Hat Cymbals
Thanks to the remarkable Tru-Motion technology with multi-optical-sensor (patent pending), ultra-high precision gap detection and unlimited free movement of top/bottom cymbals are realized, which were difficult with conventional electronic drums.

The Unwavering Confidence
The 20 x 15" kick drum props the whole drum set on stage by completely absorbing impacts of the beater throughout the large head.

At the same time, its quietness is much improved over the conservative design with a small pad on the head.


14" - More Solid, More Delicate
The new 14 x 5.5" snare drum with exclusively optimized multi-sensor responds to delicate touches.

Moreover, 10 lugs allow for high head tension and larger side rims ensure unprecedented comfort.

Experience the True Low-Rebound
The unique rebound of the acoustic floor tom that may stop sticks, achieved by the new 15 x 15" floor tom.

We have achieved both the realistic low-rebound that was difficult to achieve with 14" or less and stable sensing.
Various Optional Components
EFNOTE offers a wide range of options as a comprehensive drum brand.

All optional components have the same design language and are fully software compatible, so you are free to extend your customized kit.

For Training

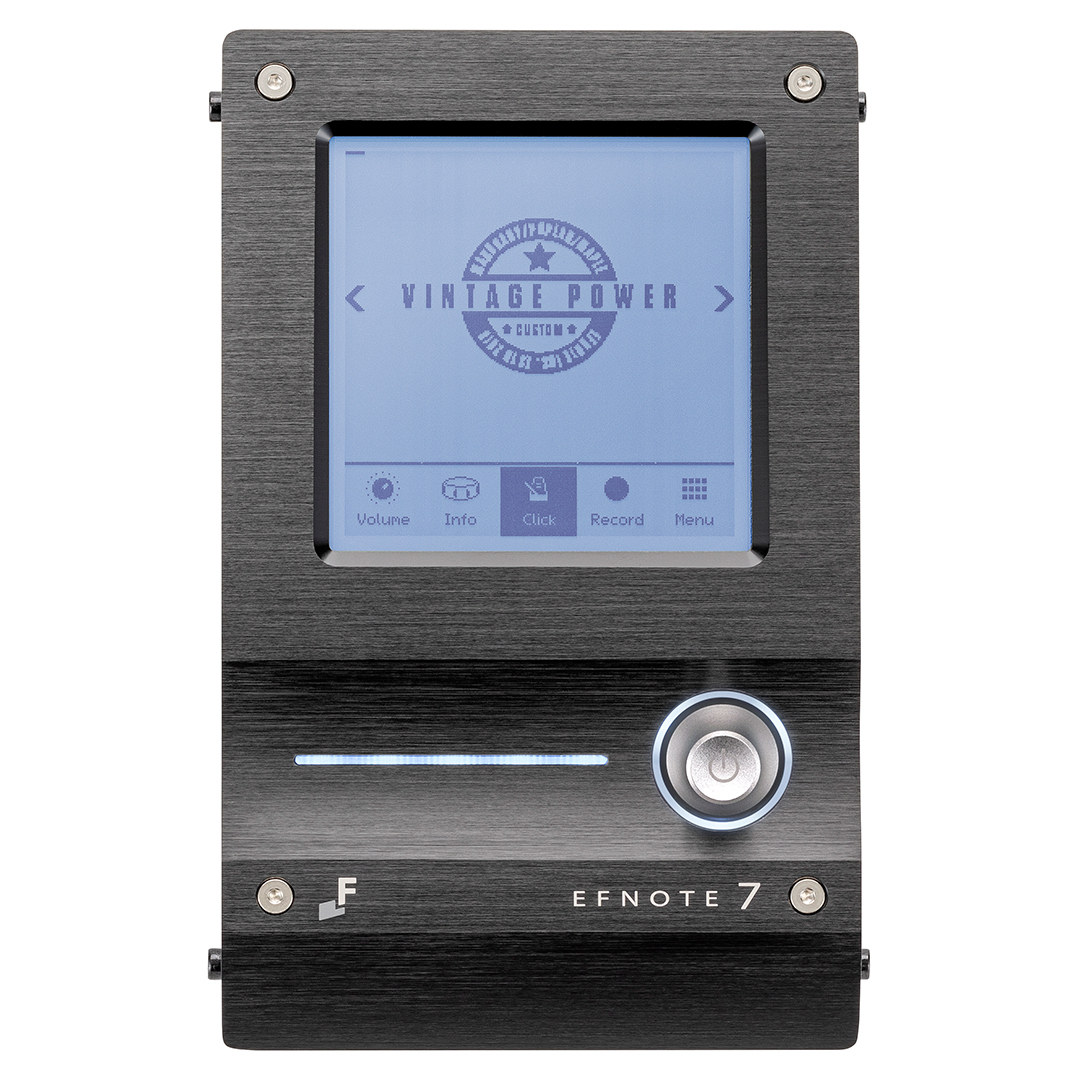

Multi-function metronome with beat LED indicator
Built-in metronome speaker for daily training without headphones
On-board recording function (15 songs)
Stroke Analyzer
Rhythm Box feature provides over 90 basic drum beats


For Recording
USB 8-ch individual audio outputs with Mac / Windows (ASIO)
USB 2-ch audio inputs for playback
Analog 4-ch audio outputs
USB MIDI in/out with individual MIDI channels
MIDI output (5-pin DIN)
On-board drum recording (15 songs)

For Small Gigs
Setlist feature enables you to configure kit order with tempo for each song
Kick and Snare can be output individually with analog 4-ch outputs
Click and Audio-In can be assigned only for headphones
High-power headphones output
MIDI output (5-pin DIN)
Stroke Analyzer
"Stroke Scope" displays your strike points on time-line
"Accuracy Score" estimates your strike accuracy

Sound Edit
Tuning, Muffling, 2-band EQs for each pad
Pad layer function can overlay two sounds
User Inst Library enables you to store 128 customized instruments
On-board reverb
Dedicated level control screen


Flexible Audio Routing
10-ch output buses
Flexible output routing for each pad
Output assignable click
Output: 4-ch analog / 8-ch USB
Input: Analog / Bluetooth / 2-ch USB

Bluetooth™
Bluetooth audio-in provides you to play along with Spotify™ / YouTube™ with your smartphone
Bluetooth MIDI

(200557)

SKU 200557
Barcode # 200557
Brand EFNOTE
Shipping Weight 30.0000kg
Shipping Width 1.000m
Shipping Height 1.000m
Shipping Length 1.000m
Shipping Cubic 1.000000000m3
