In 2018, a group of skilled engineers who had developed and innovated the electronic drum category for the last 20 years decided to pursue a different path. A fluid approach to developing electronic drums was needed, after feeling the limits of working for a leading Japanese musical instrument manufacturer. A place where they could throw the constraints of cost and mass production out the window.

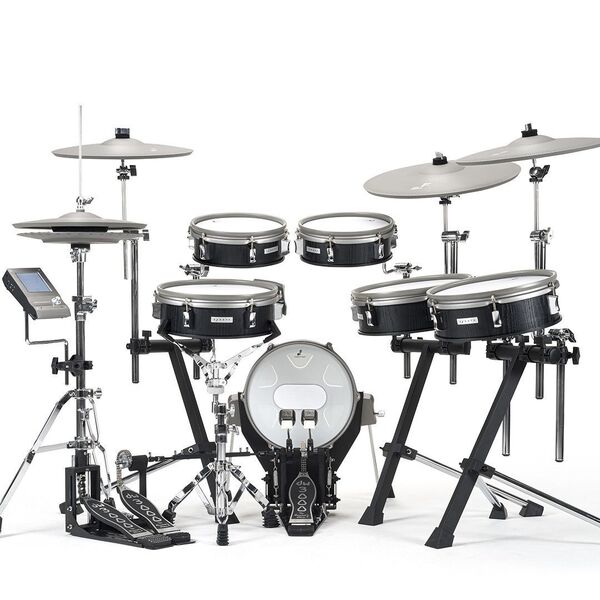

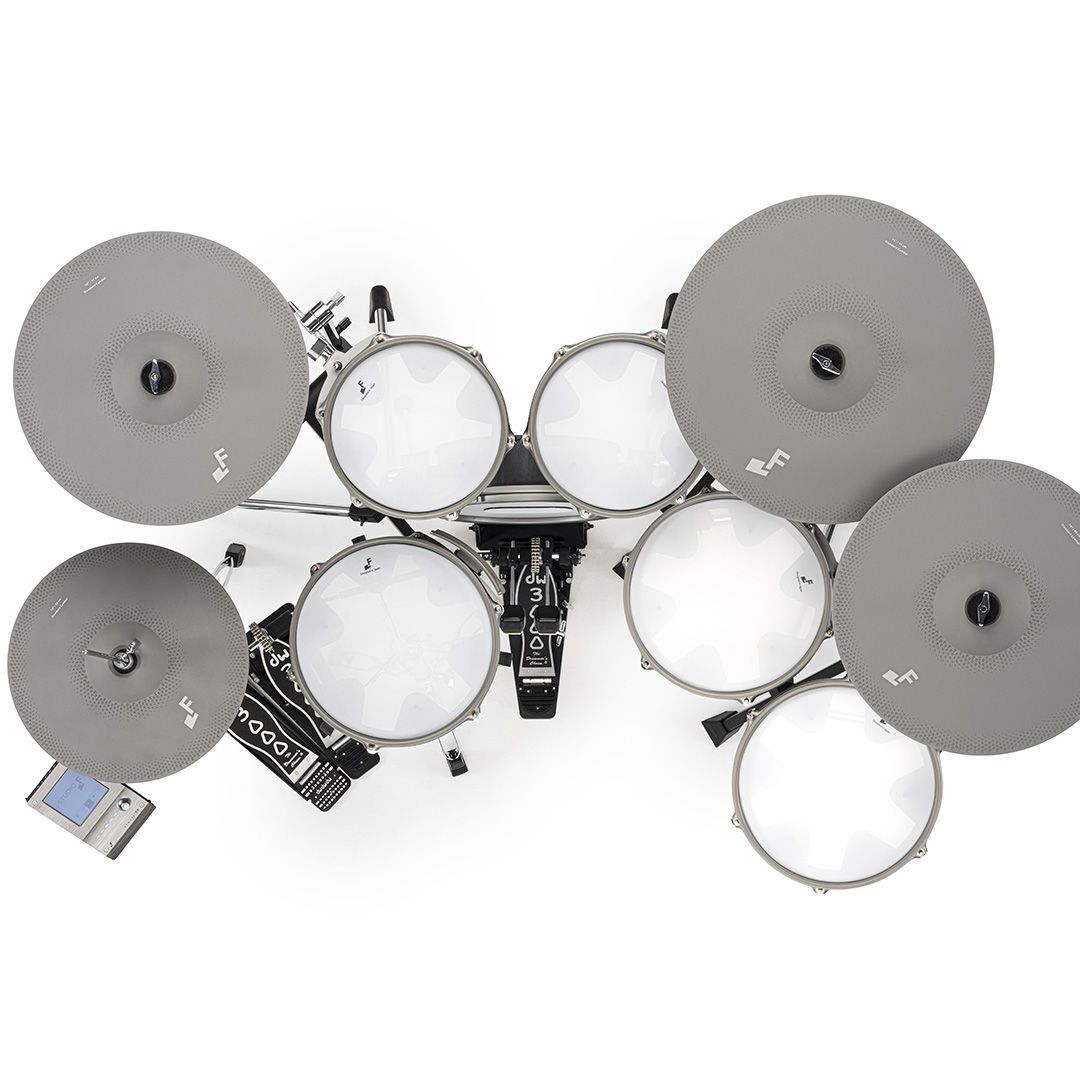

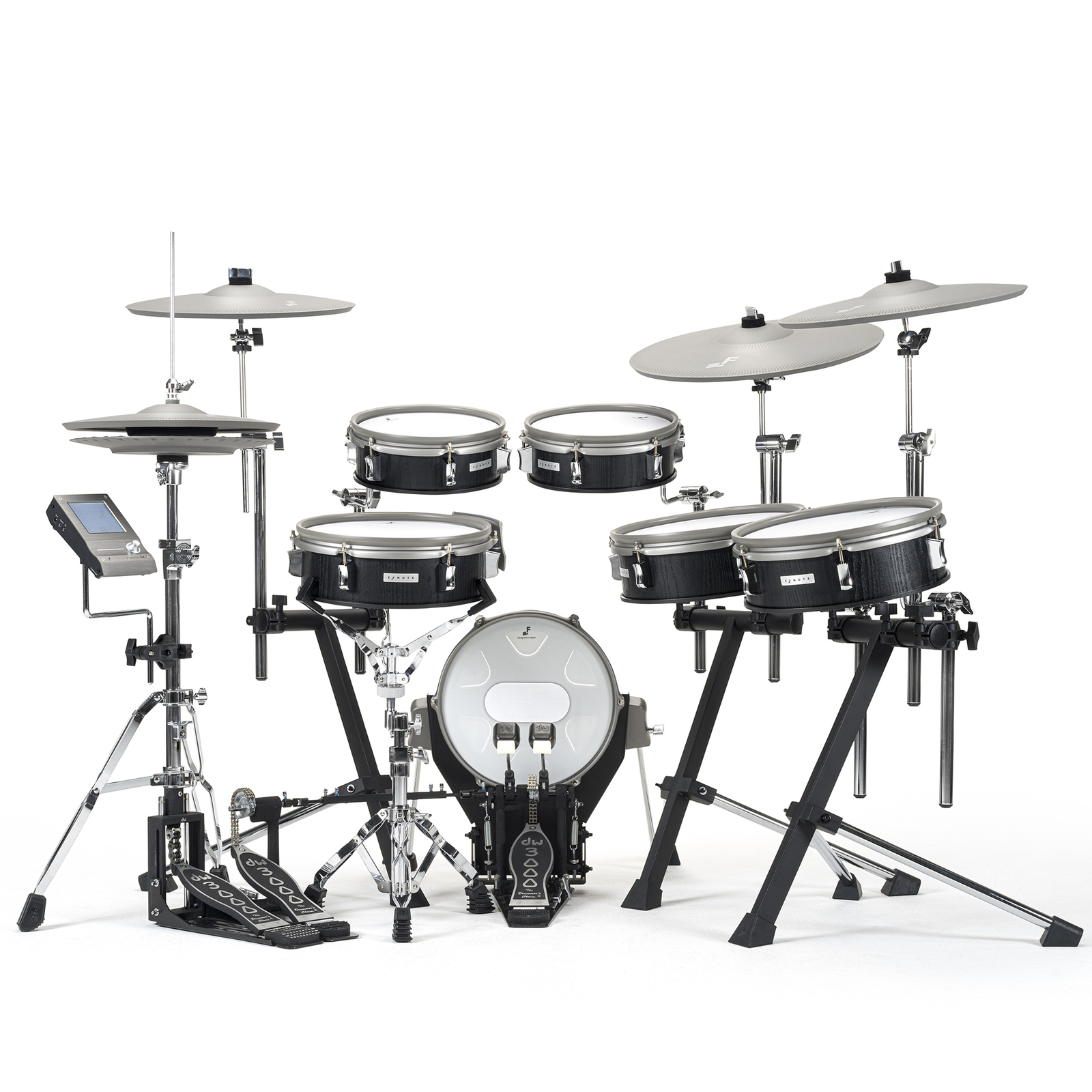

The EST-3X is a premium 6 piece Mesh head Electronic drum kit featuring TRU-ACO sampled sounds. USB and Bluetooth connectivity, Multi Zone drums and cymbals. Includes hardware KIT A+C*, Deluxe bass drum pedal, drum throne, hi hat stand and sticks.

*Hardware shown in photos is DW brand which is NOT included, kit ships with a standard hardware kit from Ef-Note

The EFNOTE 3X is expanded for the ultimate performance:

• Playability with the real hi-hat, the bigger cymbals and the high-sensitivity drum pads
• Adaptability for various musical genres
• Presence for stage/live-streaming use

6-Piece Drum Pads, 4-Piece Cymbals

• 12" snare pad and 12" kick pad
• 2x 12" tom pad + 2x 10" tom pad
• 14" real 2-piece hi-hat cymbals
• 2x 16" crash cymbal and 18" ride cymbal

Solid and Stable Kick Pad

• Three-dimensional design with a strong presence
• Elegant matte black finish
• Independent lug design
• Low-rebound 12" mesh drum head
• Dual-sensor stable sensing for single/double beater(s)
• Angle-adjustable kick pedal attachment
• Rugged spars with rubber/spike tips

The Finest Hi-Hat Cymbals

• The freely swinging top and bottom cymbals have changed the concept of electronic hi-hat cymbals
• The multiple optical sensing precisely responds to drummer's high-speed footwork
• Smooth continuity from tight-closed to full-open sound
• 14" top/bottom cymbals
• General hi-hat stands compatible with φ12.7 mm (1/2") hole cymbal can be used

Monocoque Drum Shells

• Elegant matte black finish
• Independent lug design
• Monocoque shell structure for stiffness and durability
• Hot-spot-less sensing with multi-sensor
• Suspended tom mount
• Colored hoop rubber
• Double-layered mesh drum head
• 2-zone (head/rim)
• 12" Snare, 10" Tom 1/2, 12" Tom 3

Snare Side-Rim

• Easy to play side-sticks
• Accurate sensing
• Low acoustic noise
• No need to switch a function between rim-shot and side-sticks

3-Zone Crash / Ride Cymbals

• Elegant "warm-gray" colored cymbals
• Fine engraved surface
• Weight simulation with thin edge for appropriate striking feel
• 360° flat sensing with multi-sensor
• 360° choke supported
• Full 3-zone Crash/Ride cymbals (bow/edge/cup)
• 18" Ride, 16" Crashes, 14" Hi-hat

* EFNOTE 3X does not support the Crash 1 cup when the Tom 4 is used.

λ (Lambda) Tripods

• Advanced design
• Easy and flexible setup
• Perfect stability

* Design registered

Ultra-Compact Sound Module

• Ultra-small form factor with uncompromised features
• Metal chassis and aluminum finish
• High quality DAC and audio circuit
• Touch screen intuitive user interface

Full-Scale Acoustic Sound

• Tru-Aco sound technology provides so real drum/cymbal sound
• Stereo samples with wide dynamic range for all acoustic instruments
• Minimum pre-processed, uncompressed waveforms for maximum fidelity
• Natural and smooth continuity roll sounds

ELISE Sensing Processor

• Capturing drummer's intentions from each stroke
• Low latency, wide dynamic-range, consistent and stable sensing
• Optimized for EFNOTE multi-sensor drum/cymbal/hi-hat pads

For Recording

• USB 8-ch individual audio outputs with Mac / Windows (ASIO)
• USB 2-ch audio inputs for playback
• Analog 4-ch audio outputs
• USB MIDI in/out with individual MIDI channels
• MIDI output (5-pin DIN)
• On-board drum recording (5 songs)

For Small Gigs

• Setlist feature enables you to configure kit order with tempo for each song
• Kick and Snare can be output individually with analog 4-ch outputs
• Click and Audio-In can be assigned only for headphones
• High-power headphones output
• MIDI output (5-pin DIN)

For Training

• Multi-function metronome with beat LED indicator
• Built-in metronome speaker for daily training without headphones
• On-board recording function (5 songs)
• Stroke Analyzer
• Rhythm Box feature provides over 90 basic drum beats
