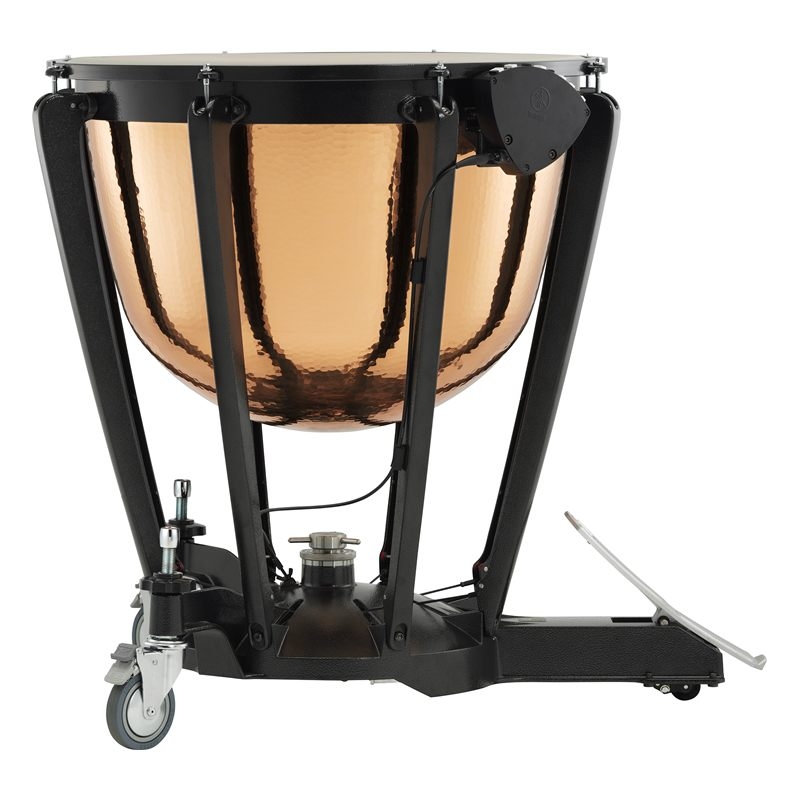

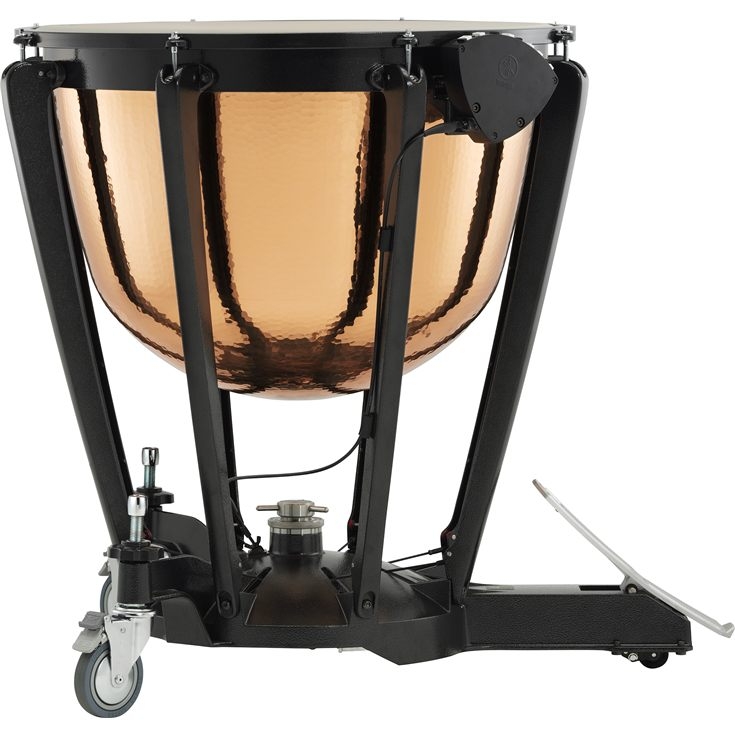

The TP7329 features a redesigned 29" hammered copper bowl that brings out the best in copper with a solid, well-defined tone. Now with an updated pedal balance spring system and a larger pedal, the sound and playability of the TP7329 is built with the professional in mind.

Bowl Design

To bring out the very best qualities of the copper material used, bowl size, bearing edge shape (the edge that contacts the timpani head), the diameter of the aperture in the bottom of the bowl, and other details have been meticulously examined and refined to deliver the deepest, richest tone possible in combination with outstanding playability.

Machine Hammering

Specially designed hammering machines faithfully simulate the hand hammering process while eliminating the unavoidable inconsistencies of handwork. The goal was not only to improve efficiency, but more importantly to recreate the technique of master craftsmen. The result is bowls that exude hand-made warmth.

Pedal Adjustment Clutch (PAC) System

The PAC system allows pedal resistance to be adjusted while maintaining perfect pedal balance. A large knob makes adjustment easy too.

Pedal Balance Spring System

Pedal spring and head tension are balanced so the set pitch is maintained even if the player removes his or her foot from the pedal. Pitch changes across the entire range are smooth and easy. A wide pitch range of approximately a minor sixth per inch has been achieved.

Frame

The timpani frame does more than just support the bowl. It plays a significant role in sound quality as well. In addition to offering outstanding strength and operability, the frames are designed to a weight that contributes to optimum acoustic response.

Smooth Mobility

Large main casters are supplemented by a third caster below the pedal, allowing the instruments to glide smoothly and easily.

Left: Pedal caster, Right: Main caster

Height Adjustment

The height of all casters can be adjusted over a 25mm range, allowing precise adjustments to the instrument height as well as head angle. The instruments can be ideally positioned for standing or seated playing, on any stage. Adjustment is carried out using the supplied tuning key or an appropriate allen wrench, and can be easily accomplished by one person.

Caster Lock

The main casters include a one-touch lock mechanism that contributes to fast, sure setup. In addition to the main caster lock mechanism an auxiliary brake has been added to the pedal caster. The player can engage the auxiliary brake to securely lock the caster and prevent movement of the instrument.

Left: Main caster lock, Right: Pedal caster auxiliary brake

Floating Mount

The bowl is seated in a “Floating Mount” suspension ring and does not contact any other part of the instrument. This prevents distortion of the bowl and allows unrestricted head oscillation for superior tone, resonance, and pitch clarity. This frame design brings out the full musical potential of the bowl.

*The picture shows TP-4300R Series.

Large Pedal

Large pedals have been adopted for easier operation.

Tuning Indicator

The indicator can also be easily relocated to the left or right side of the instrument to facilitate German or American setups.

Key/Wrench Holder

A tuning key/wrench holder that attaches to the side opposite the tuning gauge is included.

Yamaha Remo Renaissance Heads

Yamaha Remo Renaissance Heads with aluminum insert rings offer outstanding expression with stable pitch.
